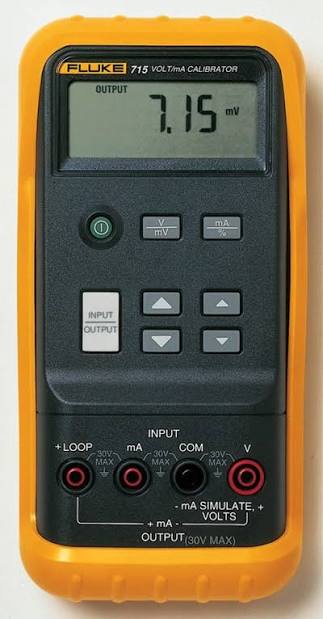

Fluke 715 Volt Ma Loop Calibrator

Product

Home / Product

Category: ELECTRICAL

Model: ELECTRICAL

Avaibility: AVAILABLE

Call For Price

Datasheet

Description
Specification

Fluke 715 Volt/mA Loop Calibrator is a compact, handheld instrument for testing and calibrating voltage and current signals in industrial process control systems. It can measure and source voltage, measure and simulate 4–20 mA loop signals, and provide a 24 V loop supply while measuring current. Its step and ramp functions help technicians check transmitters, PLC inputs, and other process instrumentation during installation and maintenance

General Specifications

Maximum voltage: 30 V
Operating temperature: –10 °C to 55 °C
Non-operating temperature: –4 °C to 60 °C
Relative humidity: 95% (10–30 °C); 75% (30–40 °C); 45% (40–50 °C); 35% (50–55 °C)
Operating altitude: 3,000 m maximum
Shock: 1 m drop test
Vibration: Random, 2 g, 5 Hz to 500 Hz
Safety: CSA C22.2 No. 1010.1:1992
EMC: EN50082-1:1992 and EN55022:1994 Class B
Power: One 9 V alkaline battery (ANSI/NEDA 1604A or IEC 6LR61)
Warranty: 3 years

Functional Specifications - Fluke 715
Voltage measurement
Range	0 mV to 200 mV / 0 V to 25 V
Resolution	10 µV / 1 mV
Accuracy	0.01% of reading + 2 counts
Current measurement
Range	0 mA to 24 mA
Resolution	0.001 mA
Accuracy	0.01% + 2 counts
Current sourcing
Range	0 mA to 20 mA or 4 mA to 20 mA
Accuracy	0.01% of reading + 2 counts
Drive capability	1,000 ohms at 24 mA
Loop power while measuring mA	24 V
Voltage sourcing	0 mV to 200 mV or 0 V to 20 V
Display current and percentage of span	mA or %
Auto step, auto ramp	Yes
Span Check	Yes
Battery life	18 hours typical, at 12 mA
